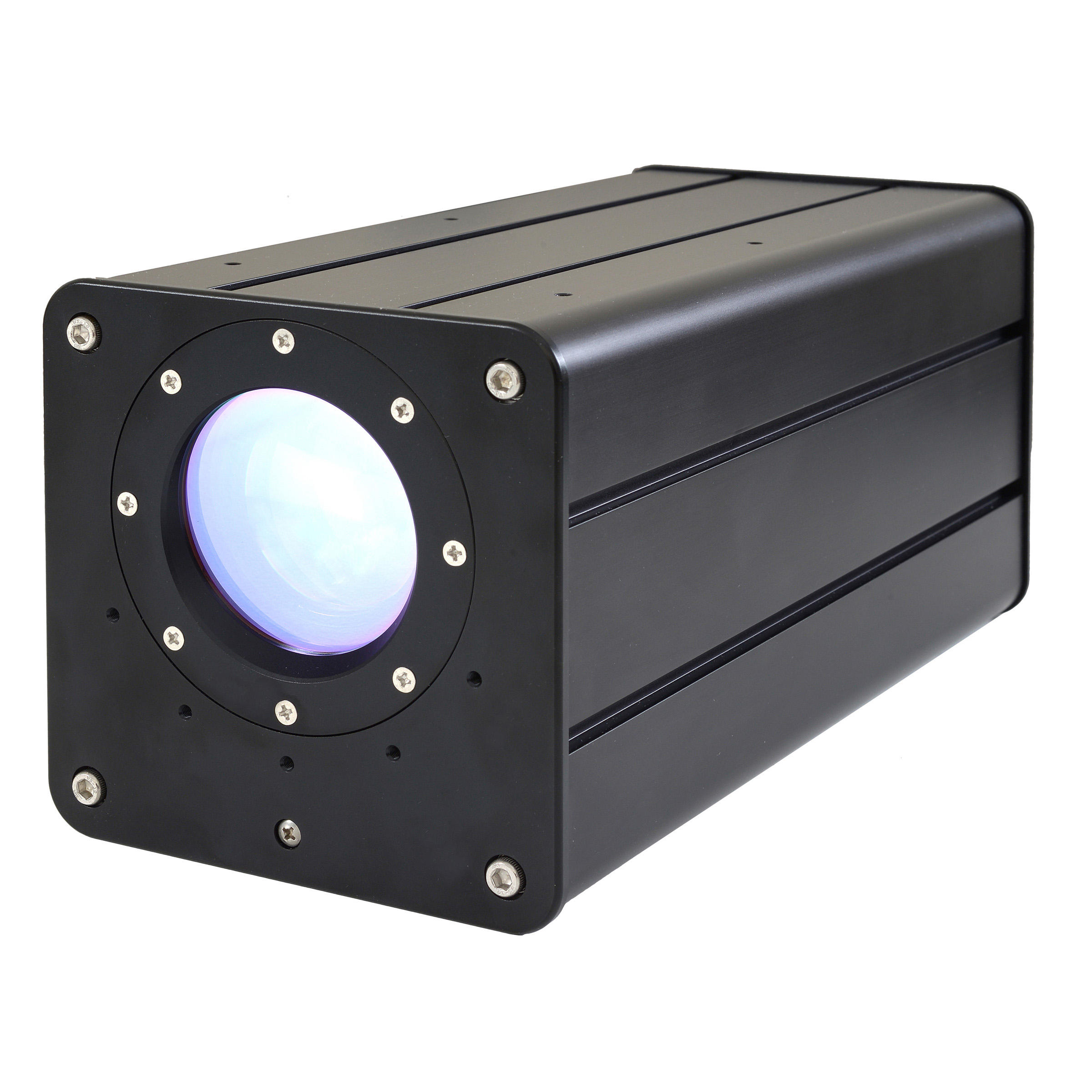

SWIR Long-Range Camera
The Fox Long Range (LR) system is designed to provide SWIR imagery on targets as far as 2km. The unit is designed to be plug-and-play for several user groups, including boarder safety, surveillance and reconnaissance teams, under various conditions. Simply turn on the system and you’re up and imaging. Designed around the Raptor InGaAs SWIR cameras and custom SWIR optics, the Fox systems are as effective as they are simple to use.
| Sensor Type | InGaAs PIN-Photodiode |
| Active Pixel | 640 x 512 |
| Pixel Pitch | 15μm x 15μm |
| Active Area | 9.6mm x 7.68mm |
| Spectral Response | 0.9μm to 1.7μm |
| Readout Noise (RMS) | LG: 174 Electrons (Typical), HG: 38 Electrons (Typical) |
| Quantum Efficiency | >80% @ 1.55μm |
| Noise (RMS) | <195 Electrons Low Gain (176 Electrons Typical), <50 Electrons High Gain (39 Electrons Typical) |
| Quantum Efficiency | > 70% From 1μm To 1.6μm |
| Pixel Well Depth | Low Gain: 1.4Me-, High Gain: 43Ke |
| Pixel Operability | >99.5% |
| Digital Output Format | 14 Bit CameraLink (Base Configuration) |
| Exposure Time | 1µs to 1 / Frame Rate |
| Shutter Mode | Global Shutter |
| Frame Rate | Up to 120Hz Programmable, 25ns Resolution |
| Optical Interface | C Mount |
| Trigger Interface | Trigger IN and OUT - TTL Compatible |
| Power Supply | 12V DC ±10% |
| TE Cooling | Active |
| Image Correction | 3 Point NUC (Offset, Gain & Dark Current) + Pixel Correction |
| Functions Controlled by Serial Communication | Exposure, Intelligent AGC, Non-Uniformity Correction, Gamma, Pk/Av, TEC, ROI |
| Camera Power Consumption | < 3.5W (TEC OFF, NUC ON) <4W (TEC ON In Ambient, NUC ON) |
| Operating Case Temperature | 20˚C to +55˚C |
| Storage Temperature | -30˚C to +60˚C |
