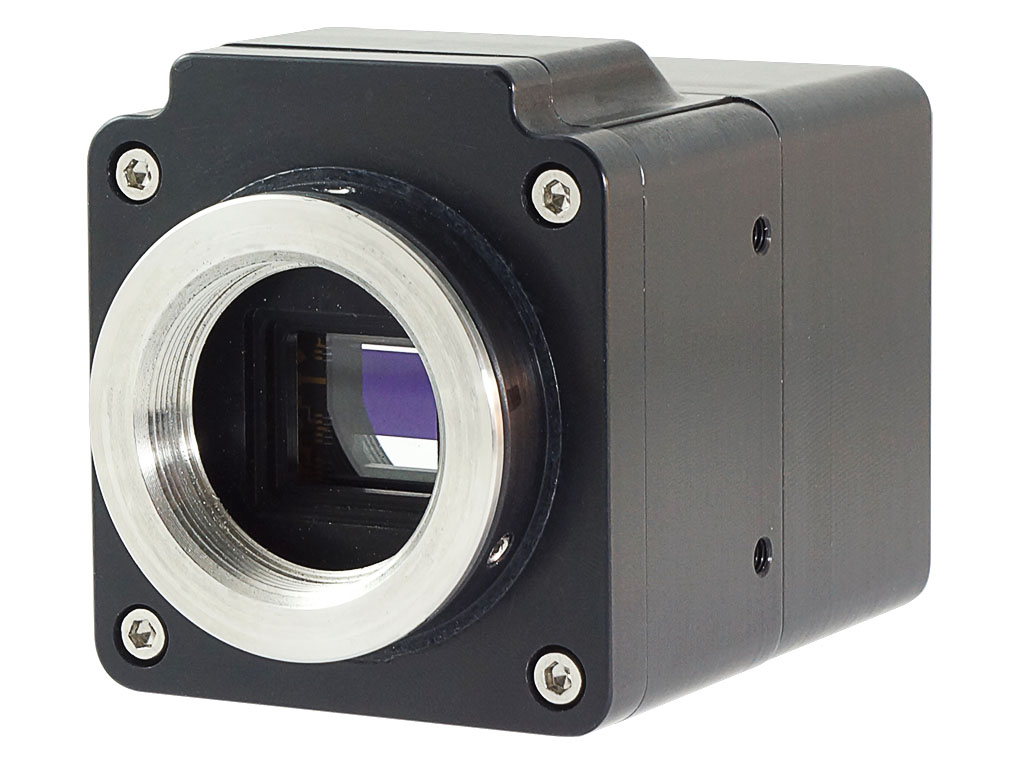

Hawk 216-A

Ultra Sensitive Monochrome EMCCD Camera | Analog

The best night vision camera on the market today, offering comparable performance to Gen III Image Intensifier cameras. Using a back-illuminated sensor from e2v, this 2/3″ full frame transfer camera offers a resolution of 625 TV lines, a frame rate up to 30Hz and a dynamic range of 55dB. It enables high sensitivity imaging (<50 flux), using smaller pixels for ultra-sharp image resolution. With a peak QE of 90% (at 500nm) it also offers enhanced UV response from 180nm.

Hawk 216 EMCCD
  • Back Illuminated EMCCD technology – Enables high sensitivity imaging (<50µlux).
  • High QE: >90% @ 600nm – GEN III image intensifier performance.
  • Enhanced blue response from 180nm – Low light UV with visible detection.
  • Fan-less cooling – Ideal for integration and discrete low light surveillance.
  • Operating temperature from -20C to +55C – perfect for rugged and harsh environments.
SensorE2V Technologies CCD216
Sensor Type2/3” Full frame transfer
CCIR | EIA
Active Pixel769 x 288 | 769 x 244
Frame Rate25Hz | 30Hz
Pixel Size11.5μm x 23μm | 11.5μm x 27μm
Active Area8.832 mm x 6.624 mm | 8.832 mm x 6.588mm
Iris ControlVideo / DC
Dynamic Range44dB
Anti-bloomingStandard
Spectral Response180-1100nm
Total Power Consumption<8W
Minimum Illumination< 50μlux
Video ConnectorSMA type
Resolution625 TV lines | 525 TV lines
Readout modeInterlaced
CoolingActive, no fan
Lens MountC mount, Back focus capability
Output Format1.0Vp-p, 75Ω, ECIR or EIA
Power Connector9 pin Micro-D connector
Power Supply12V DC ±10%
Operating Temperature-20°C to +55°C
Storage Temperature-40°C to +60°C
Dimensions75.05mm x 50.00mm x 45.00mm (including CS-mount)
Weight (no lens)< 230g
  • Ground Based Surveillance
  • Airborne Surveillance
  • UV Imaging Blue Response
  • Scientific Imaging
  • Situational Awareness

HAWK 216 EMCCD surveillance video

Image of Northern Lights Monitoring. Courtesy of Dr. Fred Sigernes, Kjell Henriksen Observatory (KHO), The University Centre in Svalbard
