High resolution, High Sensitivity, Digital VIS-SWIR camera

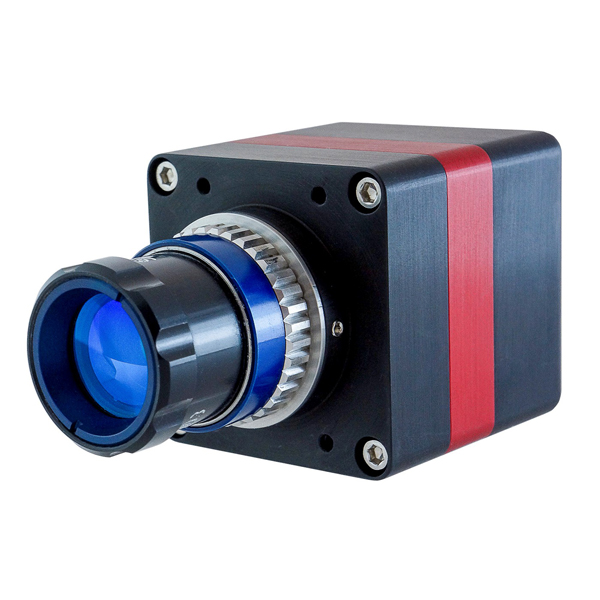

Using a 1280 x 1024 InGaAs sensor from SCD, the OWL 1280 offers visible extension from 0.4µm to 1.7µm to enable high sensitivity imaging. The 10µm x 10µm pixel pitch enables the highest resolution imaging. It will offer less than 40 electrons readout noise, with a ultra-high intrascene dynamic range of 68dBdB, enabling simultaneous capture of bright & dark portions of a scene.
Available with a 12 bit Camera Link output, the OWL 1280 will run from 10 up to 60Hz. The camera will feature On-board Automated Gain Control (AGC) which will enable the best contrast image from low light to bright as well as an on-board intelligent 3 point Non Uniform Correction (NUC) algorithm providing the highest quality images. As with all Raptor cameras the OWL 1280 is ultra compact, rugged and low power (<3W). The camera is stabilised with no fan.
Please note: This product is under the export control of UK government and maybe subject to an Single Individual export licence before shipment.
- VIS-SWIR technology – Enables high sensitivity imaging from 0.4μm to 1.7μm
- 10μm x 10μm pixel pitch – Enables the highest resolution VIS-SWIR image
- <50 electrons readout noise – Enables the highest VIS-SWIR detection limit
- Ultra high intrascene dynamic range – 69dB – Enables simultaneous capture of bright & dark portions of a scene
- On-board Automated Gain Control (AGC) – Enables clear video in all light conditions
- On-board intelligent 3 point NUC – Enables highest quality images
- Ultra compact, Low power (< 3W) – Ideal for hand-held, mobile or airborne systems
- Rugged, No fan – Enables integration into UAV, handheld or any Electro-Optic systems
| FPA Specification | |
|---|---|
| Sensor Type | InGaAs PIN-Photodiode |
| Active Pixel | 1280 x 1024 |
| Pixel Pitch | 10µm x 10µm |
| Active Area | 12.8mm x 10.24mm |
| Spectral response | 0.4mm to 1.7mm |
| Readout Noise (RMS) | Low Gain: 160 electrons (typical) | High Gain: 47 electrons (typical) |
| Quantum Efficiency | >80% @1.55µm |
| Full Well Capacity | Low Gain: 450Ke- | High Gain: 10Ke- |
| Pixel Operability | >99.5% |
| TE Cooling | Active |
| Camera Specification | |
|---|---|
| Digital Output Format | 12 bit Camera Link (Medium Configuration) |
| Exposure time | Low Gain: 300µs to 92.5ms | High gain: 600µs to 86.5ms |
| Shutter mode | Global Shutter |
| Frame Rate | 10 to 60Hz |
| Optical Interface | C mount (selection of SWIR lens available) or M42 |
| Camera Setup / Control | Camera Link |
| Dynamic Range | LG: 69dB, HG: 47dB |
| Trigger interface | Trigger IN and OUT - TTL compatible |
| Power supply | 12V DC ±0.5V |
| TE Cooling | Active |
| Image Correction | 3 point NUC (offset, Gain & Dark Current) + pixel correction |
| Functions controlled by serial communication | Exposure, intelligent AGC, Non Uniformity Correction, Gamma, Pk/Av, TEC, ROI |
| Camera Power Consumption | <3W (TEC OFF, NUC ON) |
| Operating Case Temperature | -20˚C to +55˚C |
Surveillance
- HD long-range day/night SWIR imaging
- Airborne and Ground Payload
- Hand Held Goggles
- Driving Vision Enhancement (DVE)
- Airborne EVS
- Vision enhancement
Scientific
- Astronomy
- Beam Profiling
- Hyperspectral Imaging
- Semiconductor Inspection
- Solar Cell Inspection
- Thermography
